Modular control panel WindMe series

Mycond WindMe modular air handling and air conditioning units are versatile devices that can be customized to meet individual customer requirements and expectations thanks to their configurable design.

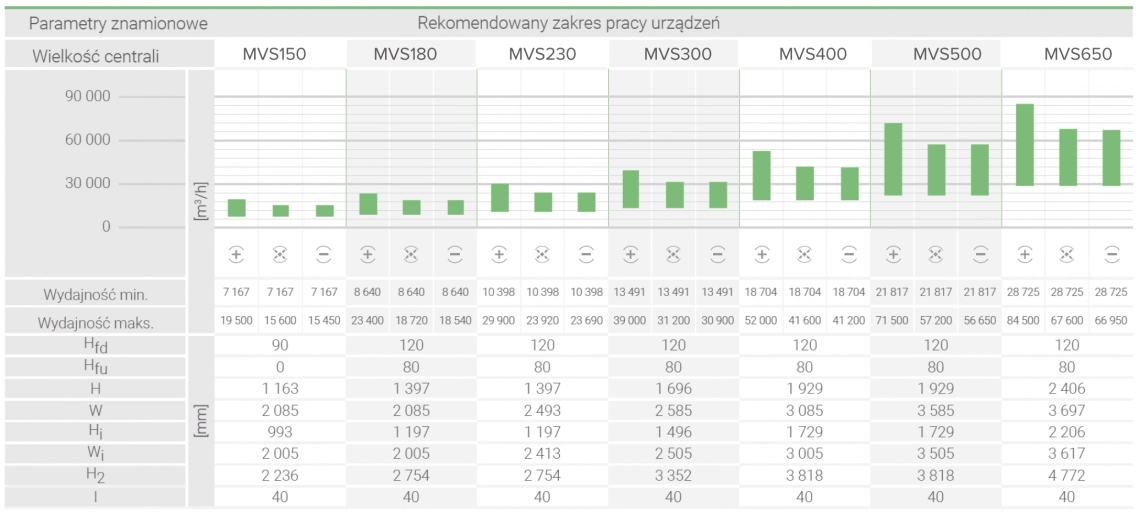

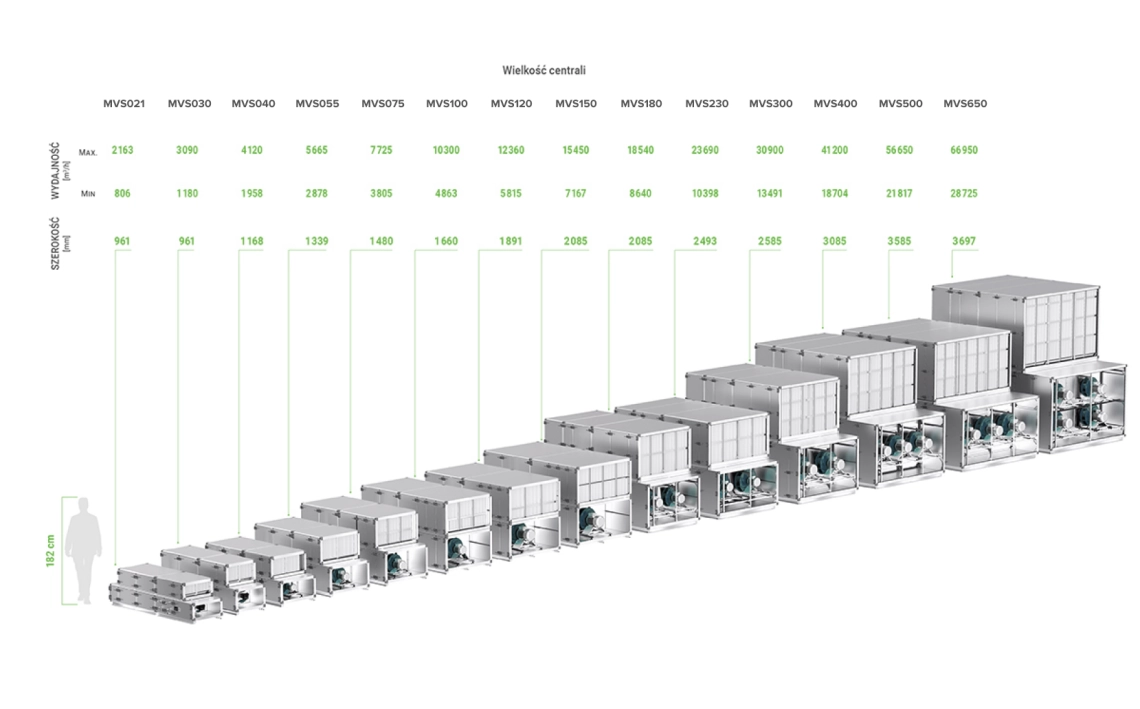

Ilman virtausnopeus: 1100 ... 10000 m3/h

Haluatko ostaa tai onko sinulla kysyttävää?

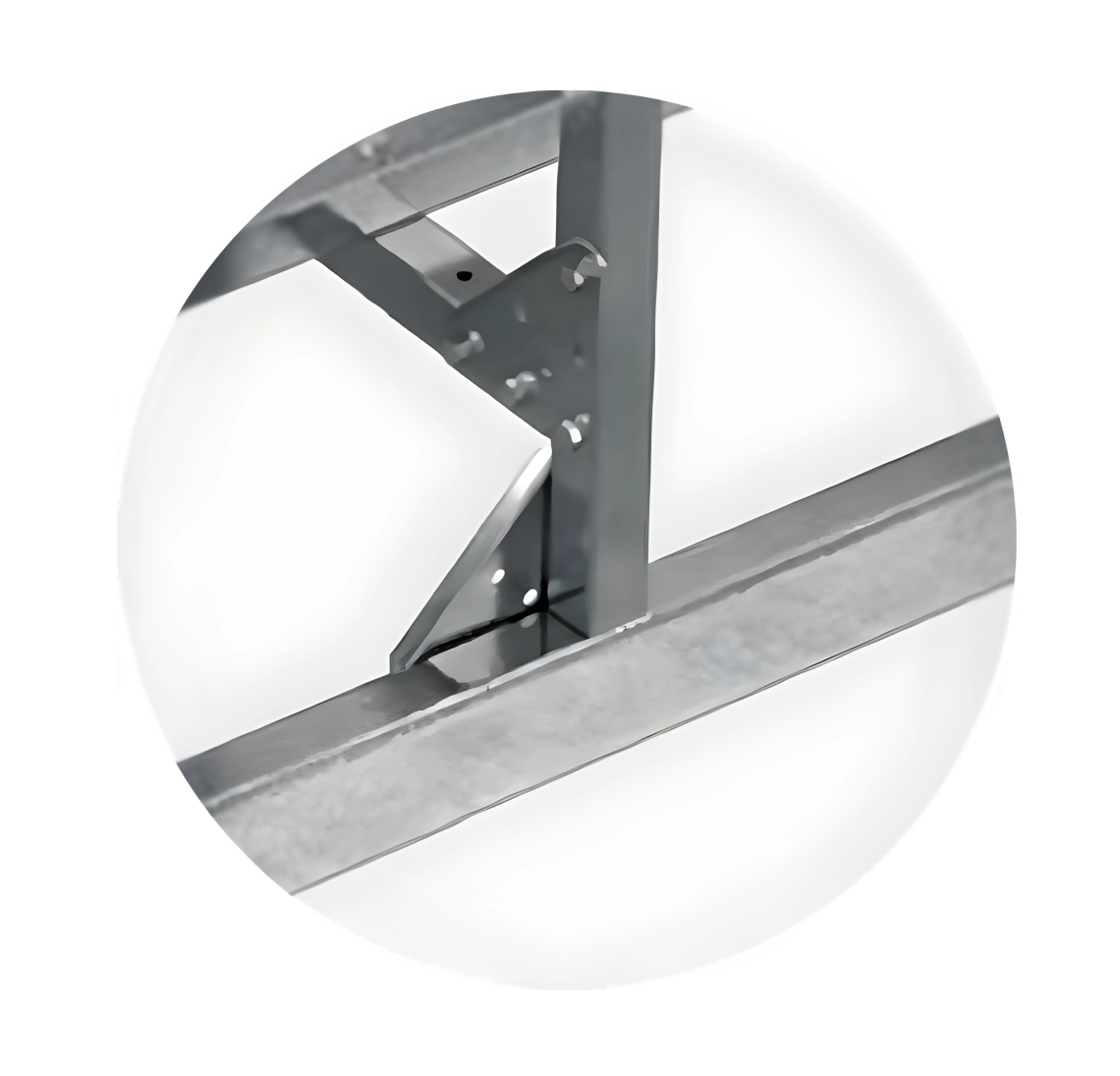

Fan section cage

Increased longitudinal rigidity of the structure.
Facilitates sectional assembly.

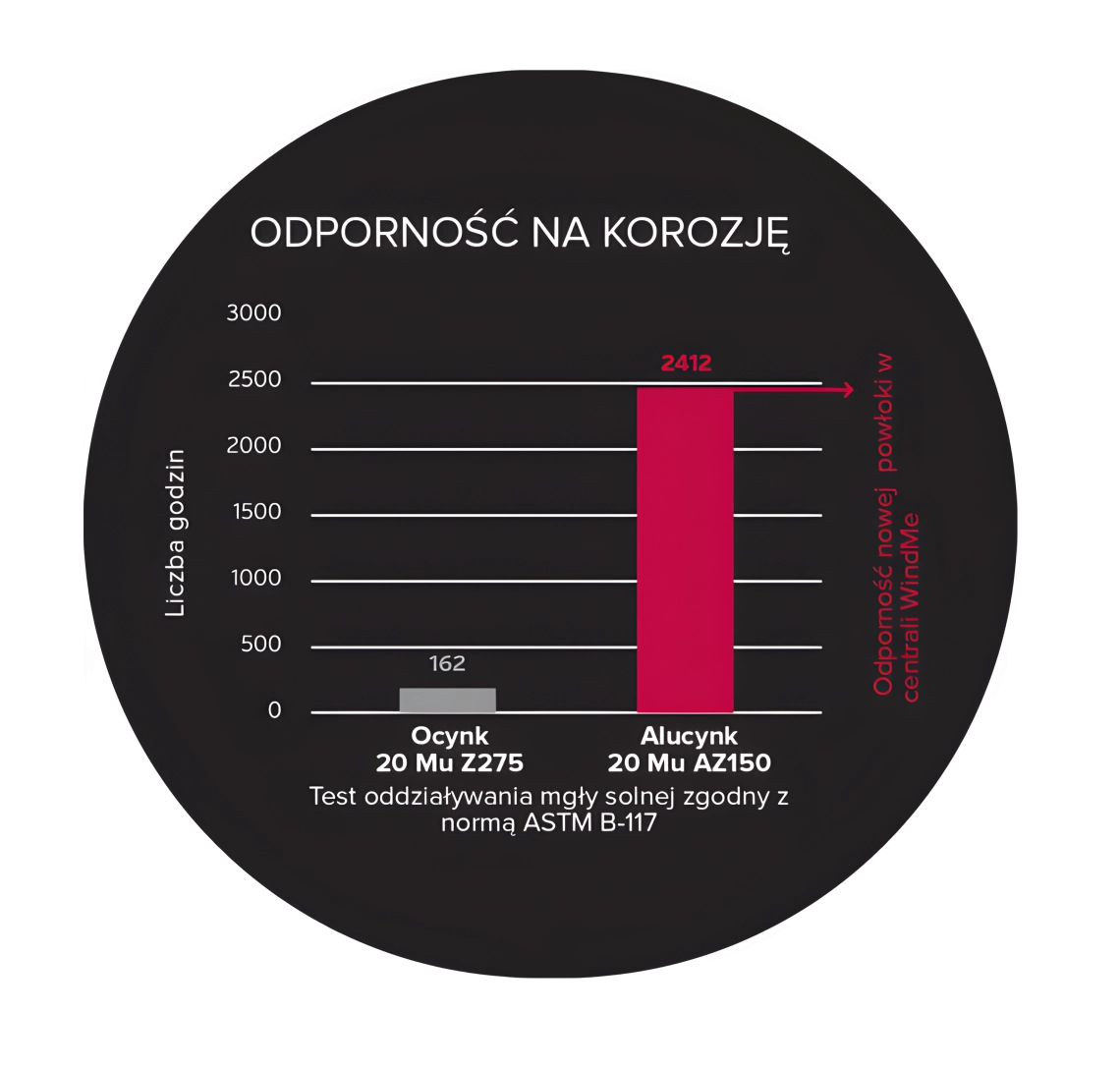

Housing cladding

Rigid, durable housing construction.
Low heat and UV radiation absorption.
High resistance to weather conditions.

Housing cladding

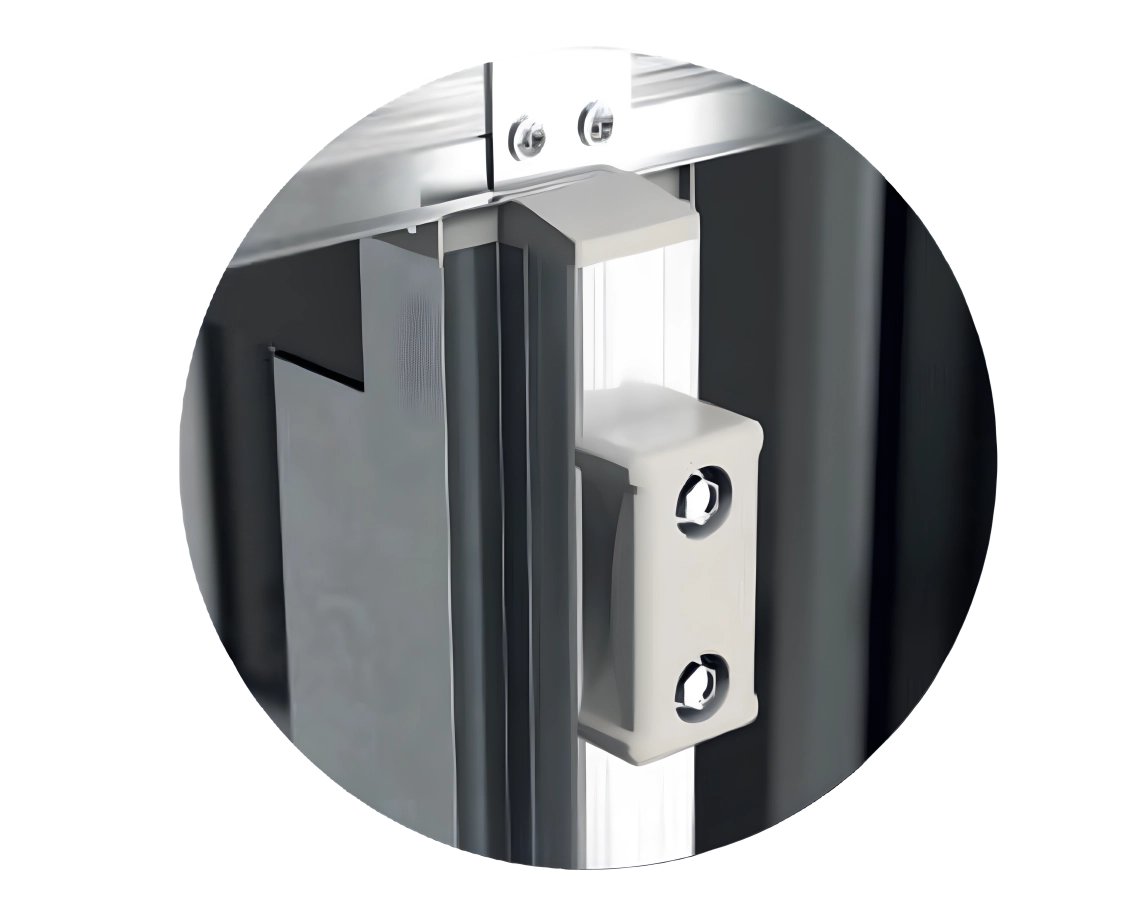

Structural posts

ALUMINUM POSTS WITH SPECIAL DESIGN FOR ALL TYPES OF CENTERS

Thermal bridge break as standard.
High resistance to weather conditions and UV rays.

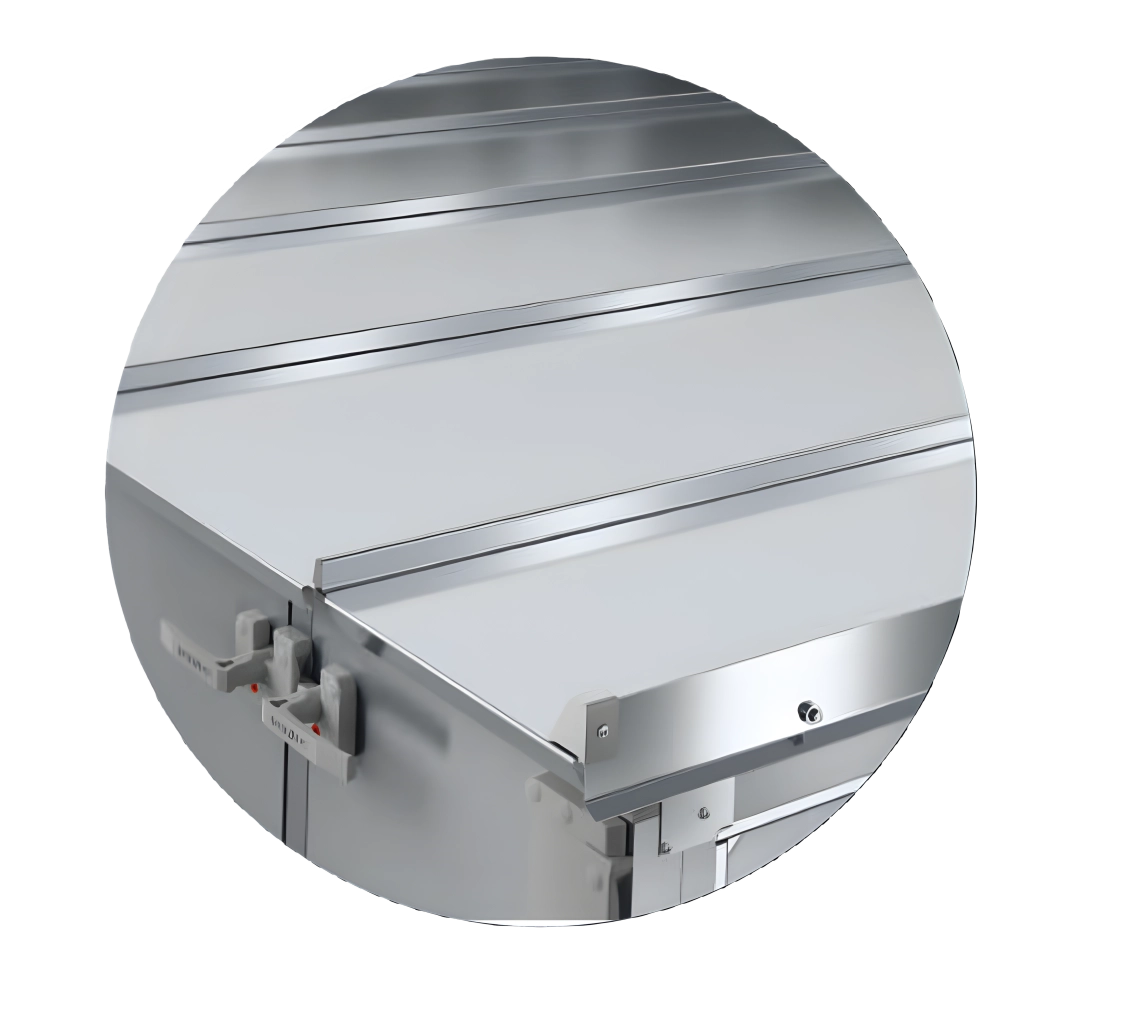

Roof

The roof is made of 0.5 mm thick sheet metal, coated on both sides with 185 um thick zinc (DX51D AZ185).
The roof is assembled from modular elements equipped with snap-in grooves ensuring complete tightness of the joints. The modular design of the roof makes its assembly ergonomic and safe.

Roof
